12th Gen Alder Lake-N-DC Power N100 Industrial Motherboard NAS 4 Cores 4 Threads Low Power Processor 4x2.5G i226 Network M.2 Slot 6xSATA DP HDMI 2.0 PCIE ×1 DDR5 Mini ITX，with SFF 8643

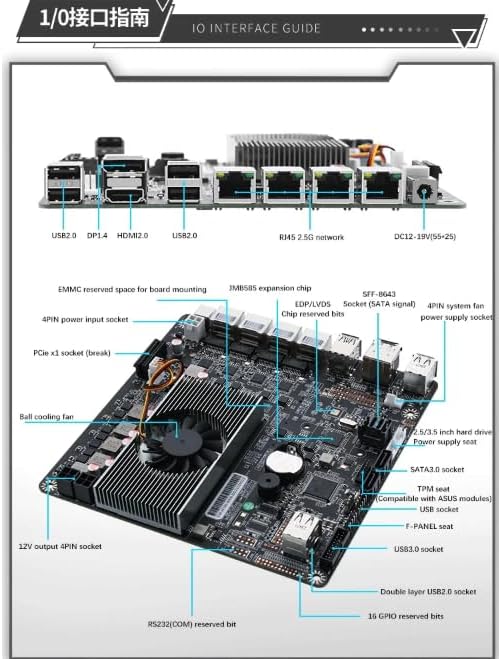

Motherboard core features: Inte 12th Generation Alder Lake-N low-power processor Standard 17x17 Mini-ITX board type DC12-19v wide voltage power supply Memory and M.2 SSD dual-slot back-mount design makes DIY chassis more user-friendly Dual M.2NVMe (Pcle 3.0 x1 signal) 2280 size The back-mounted MINI PCle slot supports 4G/WiFi6 (signal is shared with PCle) The onboard (JMB585 chip) supports 6 SATA3.0 6Gbps high-speed hard disk interfaces 1 SFF-8643 supports 1 drag 4 out of 4 SATA3.0 4 Xi226-V 2.5G network card chips 1 SO-DIMM DDR5 4800 memory slot compatible with 5200/5600MHZ HDMI2.0+DP1.4 supports dual display 4K@60Hz 4 USB2.0+1 built-in set of USB3.0 pins 1 PClex1 slot supports expansion cards (shares signal with back-mounted WiFi/4G slot) - Specifications: Motherboard features Matte black PCB High-density moisture-free fiber 8-layer circuit board Full protection (supports all USB, audio sources, and network interfaces) - processor: Alder Lake-N N97 4 (Threads: 4) 6M Cache,Up to 3.6 GH Alder Lake-N N100 4 (Threads: 4) 6M Cache, Up to 3.4 GHz Alder Lake-N N200 4 (Threads: 4) 6M Cache,Up to 3.7 GHz Alder Lake N i3-N305 8 (Threads: 8) 6M Cache,Up to 3.8 GHz - Memory: Support notebook DDR5 memory technology - TDP: 9-15W - storage: 1*SFF-8643 supports 1 to 4 SATA SATA is native (SATA2 interface is expanded by JMB585) 2*M.2 NVMe x1 signal (2280) - network card: 4*I i226-V 2.5G RJ45 network port - graphics card: N100 Integrated I UHD Graphics; 21EU HDMI2.0 interface supports 4k@60Hz DP1.4 interface supports 4k@60Hz - Onboard interface: 1*FPANEL pin 1*TPM pin (compatible with 14-pin-SPI Huaxiang TPX module) 1*USB2.0 pin 1*CPU_FAN CPU fan 4pin socket (with temperature control) 1*SYS_FAN system fan 4pin connector (with temperature control) 1*4PN power input interface 1*USB2.0 socket (double-layer USB) 1*PCle x1 slot (for signal and MINIPCIE, choose one) 2*4PIN socket outputs 12V power supply to the outside - I/O panel: 4*USB2.0 1*HDMI 1*DP 4*RJ45 2.5G network port 1*DC 12-19V 55*25 structure: MINI-ITX specifications; 6.7-in x 6.7-in, 17.0cm*17.0cm All solid capacitor design operating system: Compatible with Microsoft@Windows 10/11 64-bit Compatible with Linux Only supports UEFI mode

• 【Low power processor】Intel Celeron Processor N100: 4 Cores 4 Threads, 4M Cache, up to 3.4 GHz, with Intel UHD Graphics.
• 【High speed network card】This NAS motherboard has 4* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
• 【Industrial NAS Motherboard 】Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity-- 4* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.

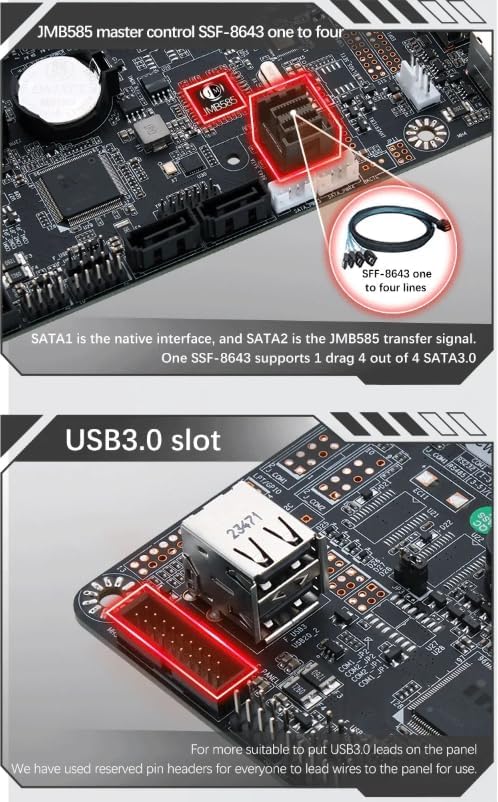

• 【 Storage and Memory】1* DDR5 slots, compatible with 4800/5200/5600MHz (non-ECC), RAM supports up to 32GB, 6* SATA3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 2* M.2 NVMe 2280 PCIE3.0x1, stable and ultra-fast transfer speed.Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz.
• NOTE: 4*USB2.0;1*HDMI;1*DP;4*RJ45 2.5G network port;1*DC 12-19V 55*25;It is recommended to use a 19V7.32A wide voltage DC power supply, which needs to be purchased separately by oneself. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up
