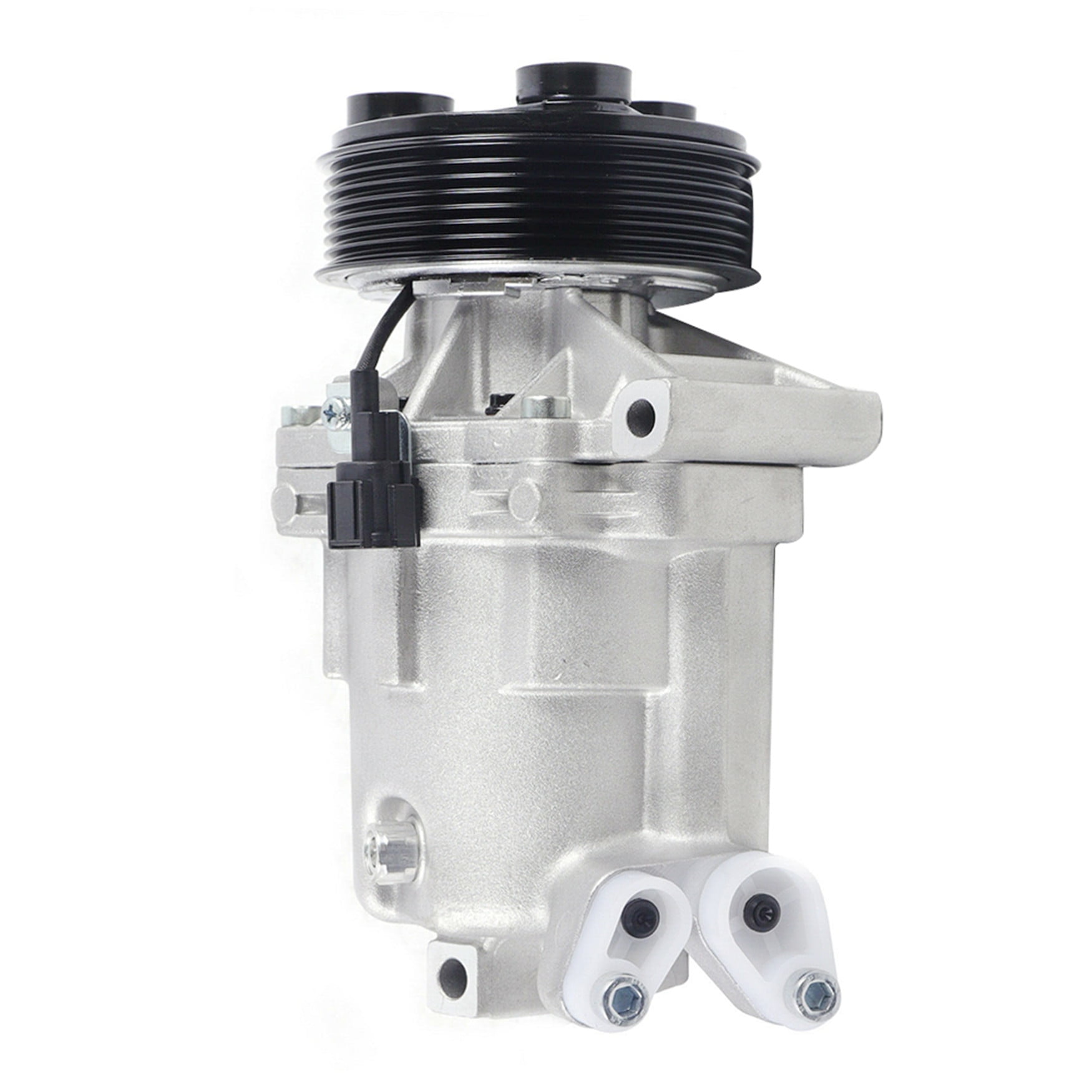

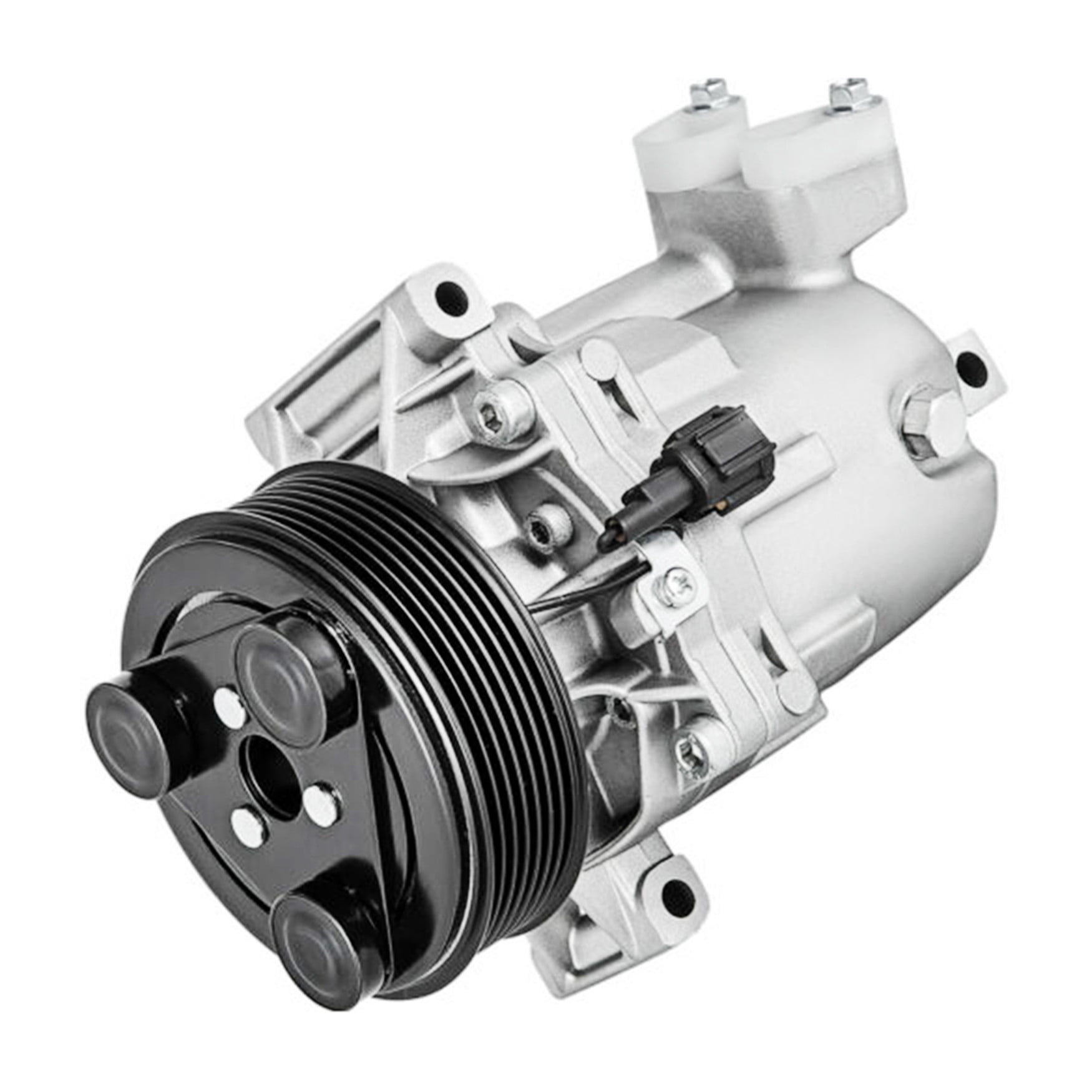

Genrics AC Compressor Replacement for 2007-2011 Nissan Versa 2007-2015 Nissan Tiida 92600CJ61B

<p>Description:</p> <p>Type:A/C compressor with clutch</p> <p>Direct Replacement</p> <p>Interchange Part Number:CO 11155C,92600CJ60A,92600CJ60B,92600CJ60C,92600CJ61B</p> <p>Other Part Number:58887,6512702,5512702,7512702,255600,2021623</p> <p>Other Part Number2:140336NC ,C2137R, C2678, 20-21623-AM</p> <p>&nbsp;Fitment:</p> <p>2007-2010&nbsp; &nbsp; Nissan&nbsp; Versa&nbsp; 1.8L</p> <p>2007-2015 &nbsp;&nbsp; Nissan&nbsp; Tiida&nbsp;&nbsp;&nbsp; 1.8L</p> <p>&nbsp;Package includes:</p> <p>A/C compressor with clutch</p> <p>&nbsp;Note：</p> <p>Each AC air compressor comes with about 80ML of Oil. You dont need to add oil additionally.</p> <p>This compressor comes pre-filled with the correct amount of oil. Thus, there is no need to add any additional oil to your system.</p> <p>Please add refrigerant to 70-80% without filling up.</p> <p>There may be noise if the refrigerant is added too much</p> <p>&nbsp;Installation Method</p> <p>&nbsp;Attention Please:</p> <p>Be sure to clean the air conditioning system before installation, otherwise it will cause compression broken.</p> <p>1. Remove compressor:</p> <p>Remove the A/C belt from the A/C compressor pulley. May involve loosening the belt tensioner (if equipped).</p> <p>2.receiver drier or accumulator, orifice tube or expansion valve.</p> <p>3.Disconnect the negative battery cable.</p> <p>4.Remove the bolt that secures refrigerant lines to the A/C compressor. Inspect A/C lines for any contamination such as metal or excessive dirt inside of them. If you find any</p> <p>contamination the system will need to be cleaned.Flush the condenser and evaporator using NON-OIL BASED A/C flush. On expansion valve systems. The valve must be removed before</p> <p>the&nbsp; evaporator can be flushed. Flushed condensers from outlet to inlet and evaporators from inlet to outlet. &nbsp;</p> <p>5.Drain all the oil from the new compressor ,if you compressor has a drain plug you will need to open it up and drain what oil is in there too.</p> <p>6.Install half oil charge into the compressor and the remainder throughout the system. Turn compressor shaft 8-10 full revolutions to insure front seal and other internal</p> <p>parts are lubricated.</p> <p>7.Install new receiver drier or accumulator and new orifice tube or expansion valve.</p> <p>8.Evacuate the A/C system for a minimum of one hour.</p> <p>9.After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout</p> <p>the system.</p> <p>10.Turn on the A/C system with the engine running and check to see if cold air is now coming out of the air duct.</p> <p>11.If the A/C system is functioning ,you may find that your electric radiator fan and compressor clutch will be cycling off and on depending on the outside air temperature.</p> <p>To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table.</p>

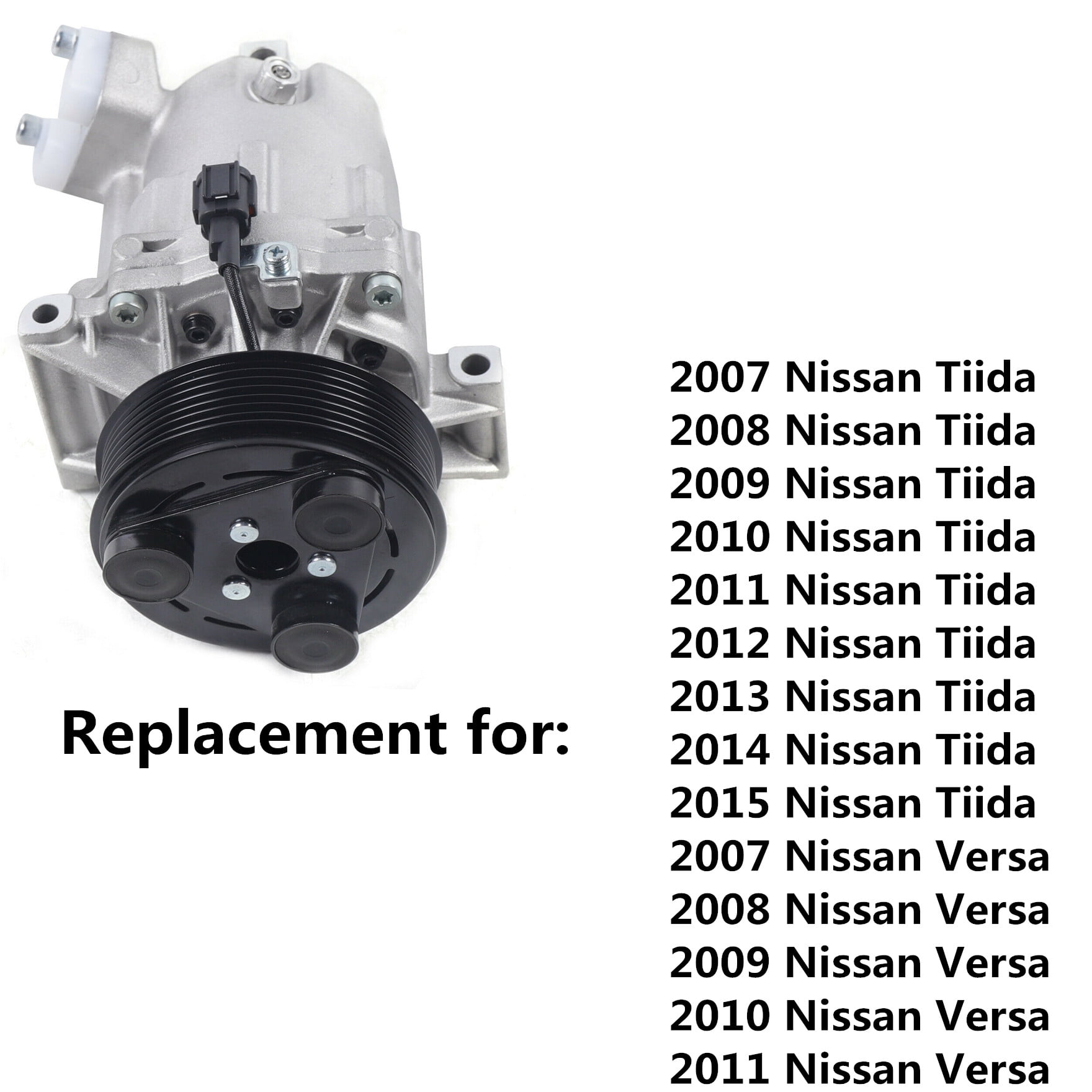

• Replacement for: 2007-2011 Nissan Versa, 2007-2015 Nissan Tiida
• Part Number: 92600CJ60A, 92600CJ60B, 92600CJ60C, 92600CJ61B, 140336NC, 6512702, 20-21623-AM
• Strong pressure, fast cooling, lower the temperature in the car, made of durable materials, ensures reliable performance, guarantees high efficiency, provides long lasting service life
• Professional installation is highly recommended
• Before placing your order, please check the compatibility table to make sure this is the correct compressor for your vehicle
